Crude Palm oil decanter centrifuge
--------------------------------------------------------------------------
Palm oil is popular in demand throughout the world. It plays a very important role in the food industry The valuable oil has also adopted in the production of soap,candles, cosmetics,biodiesel etc.Palm oil is obtained from the fruit of the palm fruits.the main producer countries are Malaysia,Indonesia,Columbia and Africa countries with tropical climate.The oil is processed whole the year and they are in non stop operations.
Separation principle:
Palm oil decanter centrifuge is a horizontal separating decanter with a cylindrical-conical solid wall bowl for the continuous separation of solid and liquid.
The solid-wall bowl has a cylindrical section for efficient separation and clarification of the liquid. The product enters the decanter through the feed tube and passes through the distributor into the centrifugation space. The liquid level in the bowl is adjustable via regulating plates. Due to the centrifugal forces, the solid particles are forced to the bowl wall and are transported by the decanter scroll to the solids outlet.The liquids are separated in the separation zone And discharge

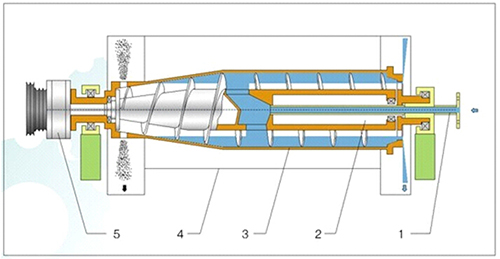

1. Feeding pipe 2. Screw conveyor 3. Drum 4. Casing 5. Gear box
Applications:
Beverage technology
Dairy technology
Oil and facts processing
Chemicals,pharmaceuticals biotechnology and mineral processing
Oils and fats recovery
Starch technology
Oilfield
Environmental waste water treatment
Technical parameters:
|
Model
|
Diameter
(mm)
|
Bowl Speed (rpm)
|
Length
(mm)
|
G-force
|
Capacity
(m3/h)
|
Main motor Power
(kw)
|
Assistant motor power
(kw)
|
Weight
(kg)
|
Overall Size
(L × W × H)
(mm)
|
|
PNX409
|
250
|
5500
|
850
|
3493
|
0.2-2
|
15
|
4
|
1020
|
2500 × 650 × 760
|
|
PNX-414
|
355
|
4000
|
860
|
3175
|
1~10
|
18.5
|
7.5
|
2035
|
2765 × 920 × 1060
|
|
PNX-416
|
355
|
4000
|
1160
|
3175
|
1~15
|
18.5
|
7.5
|
2122
|
3065 × 920 × 1060
|
|
PNX-418
|
355
|
4000
|
1460
|
3175
|
1~25
|
22
|
7.5
|
2222
|
3365 × 920 × 1060
|
|
PDC-1655
|
420
|
3000
|
1450
|
2113
|
10~30
|
55
|
15
|
4600
|
4080 ×1100 × 1420
|
|
PDC-17-4
|
420
|
3600
|
1680
|
3042
|
3~15
|
30
|
7.5
|
5165
|
3331 × 990 × 1066
|
|
PDC-18-4.4
|
450
|
3300
|
2000
|
2739
|
10~20
|
37
|
11
|
2739
|
4000 × 1120 × 1239
|
|
PDC-20
|
500
|
3200
|
2000
|
2860
|
5~45
|
55
|
11
|
4400
|
4489 × 1160 × 1350
|
|
PDC-21
|
540
|
2800
|
2000
|
2366
|
15~50
|
45
|
15
|
5290
|
4587 × 1285 × 1368
|
|
PDC-24
|
620
|
3200
|
2480
|
3555
|
15~60
|
Hydraulic station 90
|
8000
|
4650 × 2010× 1200
|
|
PDC-28HH
|
720
|
2200
|
2400
|
1975
|
15-80
|
110
|
37
|
9393
|
4800 ×1350 × 1500
|
--------------------------------------------------------------------------
