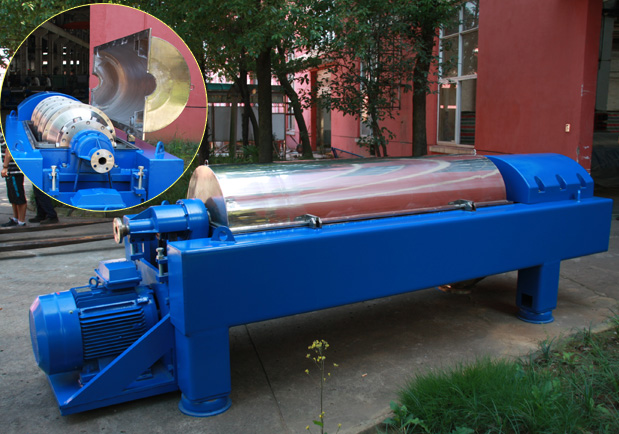

Pharmaceutical decanter centrifuge
--------------------------------------------------------------------------
Our decanter centrifuges offer pharmaceutical plants safe and hassle-free treatment processing. It is made of high quality stainless steel and contains wear protection features to guarantee high product quality and long machine life.
Our decanter centrifuge is designed with utmost quality to ensure high yields, explosion protection, hygiene, cleanliness and low noise level.
•High solid loads
•Gentle processing
•Low residual moisture contents
•Adjustable degree of clarification
•Fewer separating stages
Our decanter centrifuge is also in range of applications including environmental protection, the food industry, oil industry, chemical industry and pharmaceuticals industry. etc.
Separation principle:
In the gravity force field or centrifugal force field, the liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field it is called gravity separation, while in the centrifugal force field it is called centrifugal separation.
The machine could deal with the material which range of concentration is large, small size which widely distributing. Solid particles are less 0.5mm as rigid particles, and less than 10mm as non-rigid particles, the machine can be effectively treated.The decanter centrifuge is applicable to the separating of suspension containing solid-phase granules with diameter greater than 0.005 mm and with the concentration being 2~40%.
Technical parameters:
|
Model
|
Diameter
(mm)
|
Bowl Speed (rpm)
|
Length
(mm)
|
G-force
|
Capacity
(m3/h)
|
Main motor Power
(kw)
|
Assistant motor power
(kw)
|
Weight
(kg)
|
Overall Size
(L × W × H)
(mm)
|
|
PNX409
|
250
|
5500
|
850
|
3493
|
0.2-2
|
15
|
4
|
1020
|
2500 × 650 × 760
|
|
PNX-414
|
355
|
4000
|
860
|
3175
|
1~10
|
18.5
|
7.5
|
2035
|
2765 × 920 × 1060
|
|
PNX-416
|
355
|
4000
|
1160
|
3175
|
1~15
|
18.5
|
7.5
|
2122
|
3065 × 920 × 1060
|
|
PNX-418
|
355
|
4000
|
1460
|
3175
|
1~25
|
22
|
7.5
|
2222
|
3365 × 920 × 1060
|
|
PDC-1655
|
420
|
3000
|
1450
|
2113
|
10~30
|
55
|
15
|
4600
|
4080 ×1100 × 1420
|
|
PDC-17-4
|
420
|
3600
|
1680
|
3042
|
3~15
|
30
|
7.5
|
5165
|
3331 × 990 × 1066
|
|
PDC-18-4.4
|
450
|
3300
|
2000
|
2739
|
10~20
|
37
|
11
|
2739
|
4000 × 1120 × 1239
|
|
PDC-20
|
500
|
3200
|
2000
|
2860
|
5~45
|
55
|
11
|
4400
|
4489 × 1160 × 1350
|
|
PDC-21
|
540
|
2800
|
2000
|
2366
|
15~50
|
45
|
15
|
5290
|
4587 × 1285 × 1368
|
|
PDC-24
|
620
|
3200
|
2480
|
3555
|
15~60
|
Hydraulic station 90
|
8000
|
4650 × 2010× 1200
|
|
PDC-28HH
|
720
|
2200
|
2400
|
1975
|
15-80
|
110
|
37
|
9393
|
4800 ×1350 × 1500
|
--------------------------------------------------------------------------
