Food decanter centrifuge
--------------------------------------------------------------------------
Application:
Animal protein——
Fish oil and fishmeal by-product processing,Surimi processing,Soybean protein,peanut protein,corn protein,beer yeast.bone protein,bone blue ,blood power dewatering etc.
Vegetable protein——
Extraction from soybeans, oil seeds and some crops,Edible oil,Clarification of palm oil, olive oil and pressed bean and seed oil,Juice,Extraction from fruit, citric acid and coconut milk,Starch processing,Starch washing, dewatering and clarification based on wheat, maize, tapioca, cassava and,potatoes

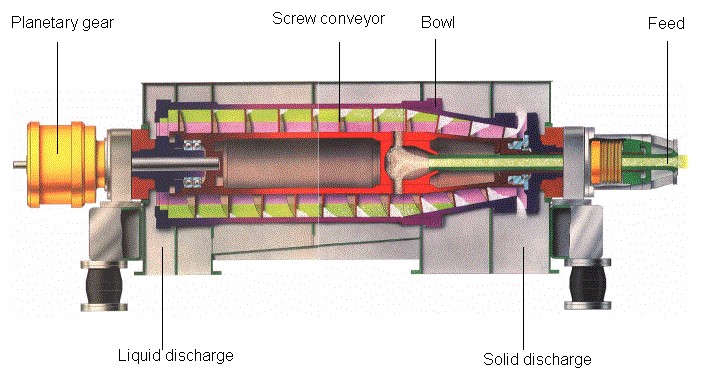

Decanter centrifuges, also called solid bowl centrifuges, are generally designed as two-phase or three-phase machines and are extremely versatile.Taking advantage of the principle that the liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.
Competitive Advantage:
High rotation speed,high G force,big length -diameter ratio.
Big capacity
Low vibration,low noises strong afford capacity
Multiple protecting apparatus,reliable running
Reliable gear box system
Corrosion resistant an resistant key parts
Flexible drive and speed adjust mode
Famous and reliable electrical components
|
Model
|
Diameter
(mm)
|
Bowl Speed (rpm)
|
Length
(mm)
|
G-force
|
Capacity
(m3/h)
|
Main motor Power
(kw)
|
Assistant motor power
(kw)
|
Weight
(kg)
|
Overall Size
(L × W × H)
(mm)
|
|
PNX409
|
250
|
5500
|
850
|
3493
|
0.2-2
|
15
|
4
|
1020
|
2500 × 650 × 760
|
|
PNX-414
|
355
|
4000
|
860
|
3175
|
1~10
|
18.5
|
7.5
|
2035
|
2765 × 920 × 1060
|
|
PNX-416
|
355
|
4000
|
1160
|
3175
|
1~15
|
18.5
|
7.5
|
2122
|
3065 × 920 × 1060
|
|
PNX-418
|
355
|
4000
|
1460
|
3175
|
1~25
|
22
|
7.5
|
2222
|
3365 × 920 × 1060
|
|
PDC-1655
|
420
|
3000
|
1450
|
2113
|
10~30
|
55
|
15
|
4600
|
4080 ×1100 × 1420
|
|
PDC-17-4
|
420
|
3600
|
1680
|
3042
|
3~15
|
30
|
7.5
|
5165
|
3331 × 990 × 1066
|
|
PDC-18-4.4
|
450
|
3300
|
2000
|
2739
|
10~20
|
37
|
11
|
2739
|
4000 × 1120 × 1239
|
|
PDC-20
|
500
|
3200
|
2000
|
2860
|
5~45
|
55
|
11
|
4400
|
4489 × 1160 × 1350
|
|
PDC-21
|
540
|
2800
|
2000
|
2366
|
15~50
|
45
|
15
|
5290
|
4587 × 1285 × 1368
|
|
PDC-24
|
620
|
3200
|
2480
|
3555
|
15~60
|
Hydraulic station 90
|
8000
|
4650 × 2010× 1200
|
|
PDC-28HH
|
720
|
2200
|
2400
|
1975
|
15-80
|
110
|
37
|
9393
|
4800 ×1350 × 1500
|
--------------------------------------------------------------------------
