Vegetable oil &animal oil decanter centrifuge
--------------------------------------------------------------------------
Waste oils, oil water, oil sludge from vegetable oil and animal oil need treated using decanter centrifugal technology to find an economical solution to reduced the disposal volume and recover valuable oil. Decanter centrifuges and centrifuge filtration-clarification systems can help to separate water and solids from the waste oils.

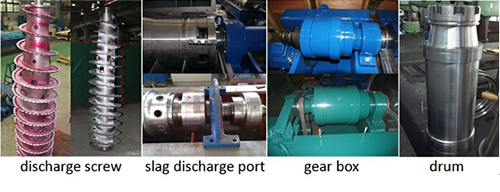

Decanter Centrifuge Systems machines can remove particles as small as 2 microns.it can be used to separate bean seed oil,sunflower oil,fish oil,fish meat,sobean protein ,peanut protein,juice,beverage.waste oil purification,washing water purification,orange juice,benzonic acid ,coconut milk,edible oil,palm oil,olive oil,etc.Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel

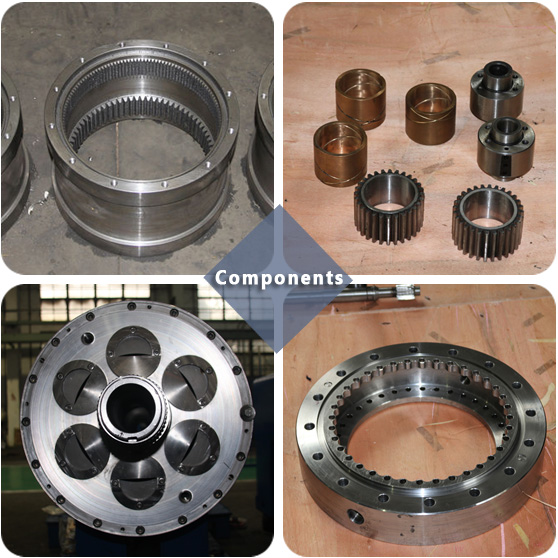

Gear box of planetary differential and cycloidal needle wheel structure both available for choose,with import brand hydraulic gear box .
Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys.for vegetable oil and animal oil,commonly,TC sprayed is more economical and more suitable.
With safety protection: bowl speed and differential speed detection, over-vibration protection,overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
Techinical parameters:
|
Model
|
Diameter
(mm)
|
Bowl Speed (rpm)
|
Length
(mm)
|
G-force
|
Capacity
(m3/h)
|
Main motor Power
(kw)
|
Assistant motor power
(kw)
|
Weight
(kg)
|
Overall Size
(L × W × H)
(mm)
|
|
PNX409
|
250
|
5500
|
850
|
3493
|
0.2-2
|
15
|
4
|
1020
|
2500 × 650 × 760
|
|
PNX-414
|
355
|
4000
|
860
|
3175
|
1~10
|
18.5
|
7.5
|
2035
|
2765 × 920 × 1060
|
|
PNX-416
|
355
|
4000
|
1160
|
3175
|
1~15
|
18.5
|
7.5
|
2122
|
3065 × 920 × 1060
|
|
PNX-418
|
355
|
4000
|
1460
|
3175
|
1~25
|
22
|
7.5
|
2222
|
3365 × 920 × 1060
|
|
PDC-1655
|
420
|
3000
|
1450
|
2113
|
10~30
|
55
|
15
|
4600
|
4080 ×1100 × 1420
|
|
PDC-17-4
|
420
|
3600
|
1680
|
3042
|
3~15
|
30
|
7.5
|
5165
|
3331 × 990 × 1066
|
|
PDC-18-4.4
|
450
|
3300
|
2000
|
2739
|
10~20
|
37
|
11
|
2739
|
4000 × 1120 × 1239
|
|
PDC-20
|
500
|
3200
|
2000
|
2860
|
5~45
|
55
|
11
|
4400
|
4489 × 1160 × 1350
|
|
PDC-21
|
540
|
2800
|
2000
|
2366
|
15~50
|
45
|
15
|
5290
|
4587 × 1285 × 1368
|
|
PDC-24
|
620
|
3200
|
2480
|
3555
|
15~60
|
Hydraulic station 90
|
8000
|
4650 × 2010× 1200
|
|
PDC-28HH
|
720
|
2200
|
2400
|
1975
|
15-80
|
110
|
37
|
9393
|
4800 ×1350 × 1500
|
--------------------------------------------------------------------------
Update：2014-11-25 14:17:44 Visits： Category：decanter centrifuges
--------------------------------------------------------------------------
|
