Waste water treatment decanter centrifuge
--------------------------------------------------------------------------

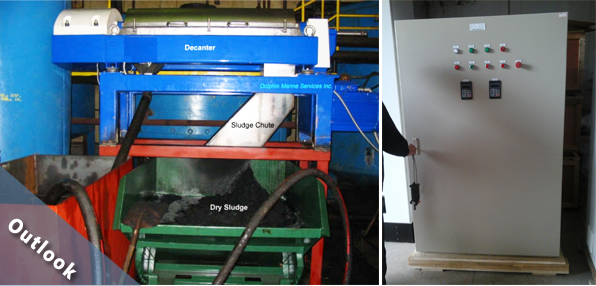

Whole waste water treatment includes sludge feeding system,flocculant adding system,dewatering system,filter cake delivery system and PLC control system.

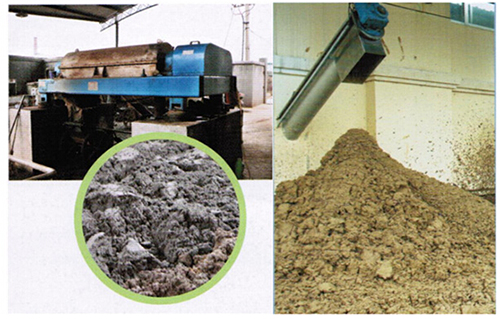

The main equipment of sludge dewatering complete system is decanter centrifuge.There are basically two application types in the wastewater treatment industry for the decanter centrifuge: sludge thickening and sludge dewatering duties.Also .it can be used for Sludge classification and Sludge clarification. With the decanter centrifuge,it is possible to separate the particles from suspending liquid with equivalent diameter bigger than 0.003mm,solid-liquid weight ratio less than 10% or volume ratio less than 70%,difference in specific gravity bigger than 0.05g/cm3
Applications:
Sludge dewatering complete system could be used in the following fields:
Municipal sludge treatment,paper mill sludge,starch factory waste water treatment,stell mill sludge,printing and dyeing mill sludge,water works sludge,pharmaceutical waste sludge,PVC sludge,sewage desulfurization sludge,grain stillage,power plant ash sludge,dairy sludge,beer sludge,drilling fluid ,electroplating liquid,fermented liquid manure,oil refining sludge,soap sludge,leather sludge and etc.
Technical parameters:
Model |
Diameter
(mm)
|
Bowl Speed (rpm)
|
Length
(mm)
|
G-force
|
Capacity
(m3/h)
|
Main motor Power
(kw)
|
Assistant motor power
(kw)
|
Weight
(kg)
|
Overall Size
(L × W × H)
(mm)
|
|
PNX409
|
250
|
5500
|
850
|
3493
|
0.2-2
|
15
|
4
|
1020
|
2500 × 650 × 760
|
|
PNX-414
|
355
|
4000
|
860
|
3175
|
1~10
|
18.5
|
7.5
|
2035
|
2765 × 920 × 1060
|
|
PNX-416
|
355
|
4000
|
1160
|
3175
|
1~15
|
18.5
|
7.5
|
2122
|
3065 × 920 × 1060
|
|
PNX-418
|
355
|
4000
|
1460
|
3175
|
1~25
|
22
|
7.5
|
2222
|
3365 × 920 × 1060
|
|
PDC-1655
|
420
|
3000
|
1450
|
2113
|
10~30
|
55
|
15
|
4600
|
4080 ×1100 × 1420
|
|
PDC-17-4
|
420
|
3600
|
1680
|
3042
|
3~15
|
30
|
7.5
|
5165
|
3331 × 990 × 1066
|
|
PDC-18-4.4
|
450
|
3300
|
2000
|
2739
|
10~20
|
37
|
11
|
2739
|
4000 × 1120 × 1239
|
|
PDC-20
|
500
|
3200
|
2000
|
2860
|
5~45
|
55
|
11
|
4400
|
4489 × 1160 × 1350
|
|
PDC-21
|
540
|
2800
|
2000
|
2366
|
15~50
|
45
|
15
|
5290
|
4587 × 1285 × 1368
|
|
PDC-24
|
620
|
3200
|
2480
|
3555
|
15~60
|
Hydraulic station 90
|
8000
|
4650 × 2010× 1200
|
|
PDC-28HH
|
720
|
2200
|
2400
|
1975
|
15-80
|
110
|
37
|
9393
|
4800 ×1350 × 1500
|
--------------------------------------------------------------------------
