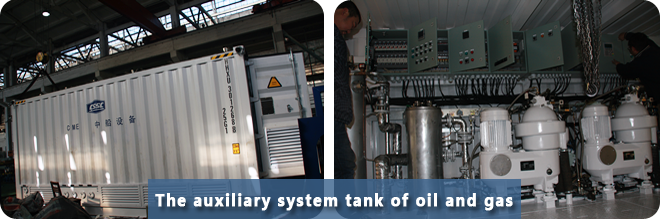

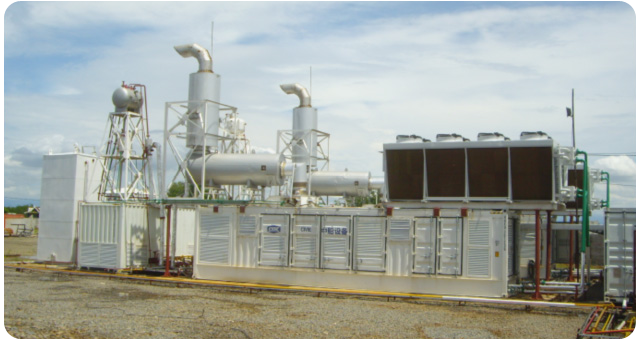

Container type HFO, LO treatment system for land power station

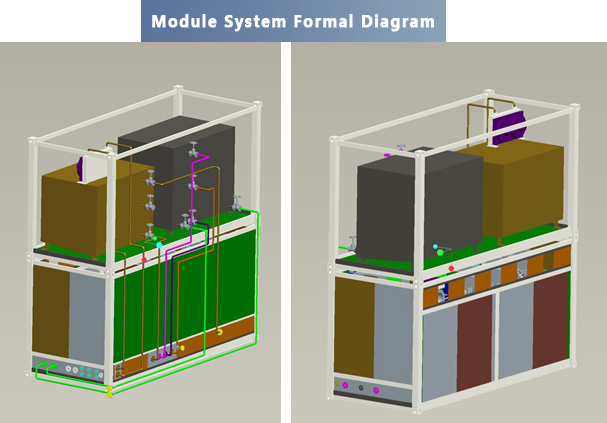

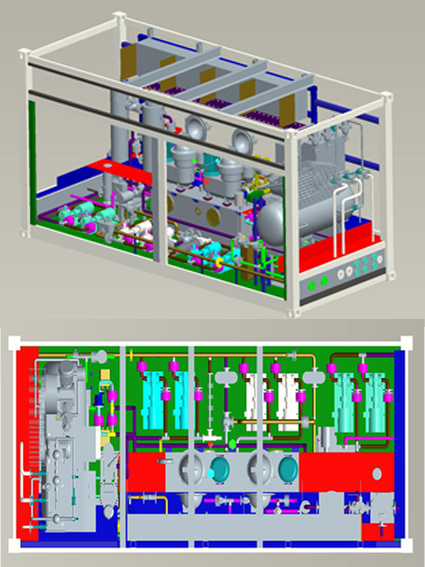

This system integrated in a standard 20 FT HQ and adopts IVS4 mode, that is, a set of auxiliary engine can satisfy the four sets of diesel generator unit at the same time.

Container integrated fuel oil supply &booster module , air compression module and fuel oil separation module. These three modules with their control system are relatively independent.

Container integrated HFO supply & booster module, diesel emergency supply and switch,
Fuel oil booster, Light and Heavy oil automatically switching , air Compression and fuel oil separation module, and also equipped with relatively independent control system.

• HFO supply&booster module
• Diesel emergency supply and switch module

• Fuel oil booster module

• Light and Heavy oil automatically switching module

• Air Compression and fuel oil separation module

• Independent control system


Besides, equipped with cooling, ventilation and lighting equipments and can meet the requirements of outdoor use (rainproof, etc.)

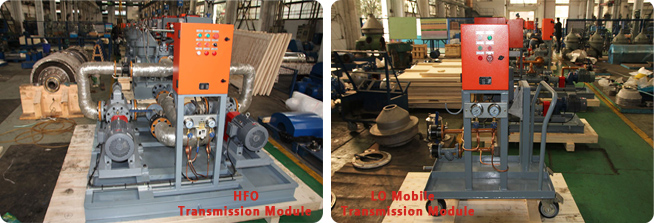

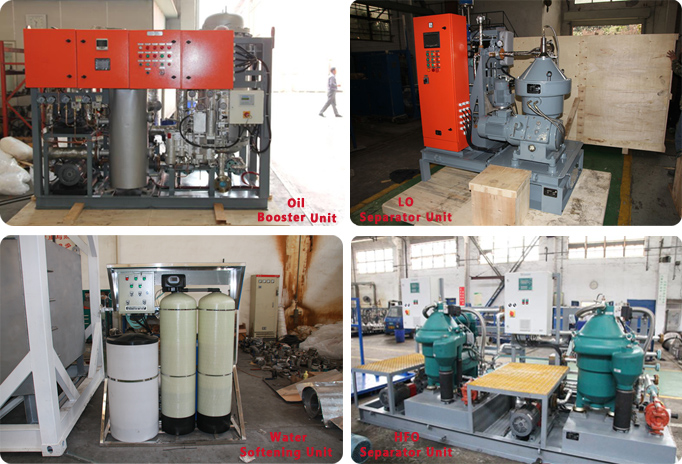

Brief introduction of fuel oil supply & booster module
This module includes heavy oil transportation, filtration, heating, booster,viscosity and temperature control ,light diesel oil emergency booster and light-heavy oil switch. Meanwhile, it is aim to ensure the oil viscosity host fed and the pressure required. And starting diesel oil emergency module while the host fails. When the host starts or stops, it switches diesel for pipeline and equipment cleaning.

Brief introduction of air compression module
In this module, compressor, air dryer, air filter, air bottles, valve fittings and control system are included. Air compression module is mainly used for diesel engine starting up and also used in the fuel oil supply module for discharging of the self-cleaning recoil filter and in fuel oil separation module for pneumatic three-way valve.

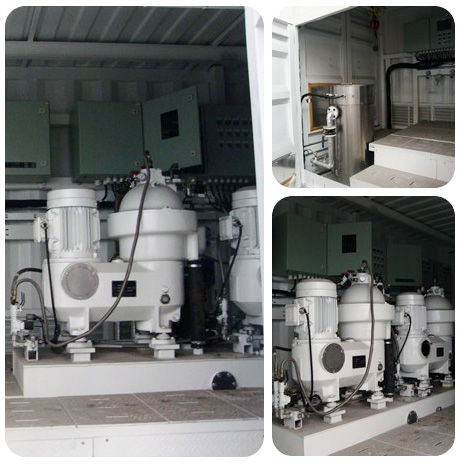

Brief introduction of fuel oil separation module
In this module, fuel oil separator is the core of heavy oil separation module and will equip with corresponding pumps and valves according to the actual requirements of customers. The control system realizes intelligent fully automatic control by PLC display and Siemens program. This module is mainly used to separate the heavy fuel oil in heavy fuel oil setting tank, and pump to heavy oil daily service tank to supply for fuel oil booster module.

PS: In addition to the three integrated modules in the container, we will also involve in oil tank, heavy and light oil transportation, oil processing and so on.

Main advantages of the system:

• High reliability
• Compactedness
• Simple Operation
