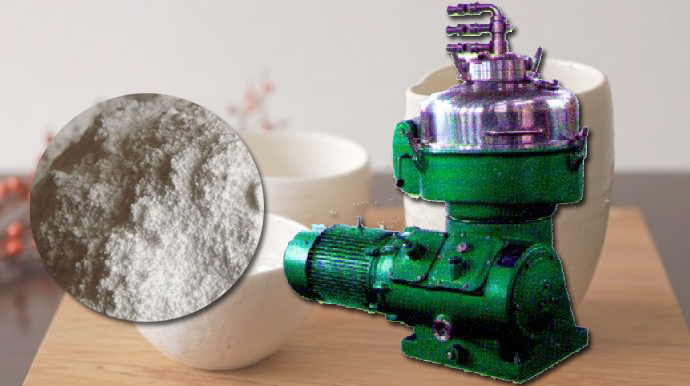

Kaolin Disc Separator
--------------------------------------------------------------------------
Model PDS-W10000 separator is mainly used for concentration and classification of nonmetal mineral
e.g. bleaching earth, bentonite, and separating and concentration of zymolytic liquid, protein and
wheat starch. The model is also used to separate the similar feed.The machine has the advantages of
high efficiency, low material consumption, convenient operation and economic maintenance cost.The

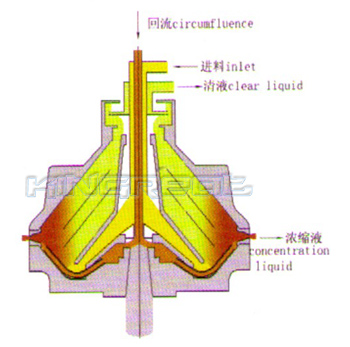

clear liquid is pumped out by centripetal pump, the concentration liquid is discharged continually by nozzles.
The machine is one kind of rotary machine with high speed, after accurate dynamic balancing, it can run for
long time with low vibration, safety and security.
Technical Parameter:
|
Model
|
PDS-W10000
|
|
Capacity (L/h)
|
8000-10000
|
|
Motor power (KW)
|
30( 380V/50Hz/3P)
|
|
Discharging type
|
Nozzle continually discharging
|
|
Output pressure of clear liquid (Mpa)
|
0.05-0.2
|
|
Net weigh (KG)
|
1100
|
|
Overall dimension (mm) (L × W × H)
|
1370 × 1015 × 1550
|
--------------------------------------------------------------------------
Update：2015-1-12 16:01:59 Visits： Category：kaolin separator
--------------------------------------------------------------------------
|
