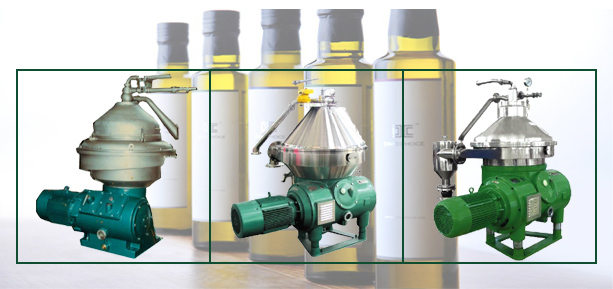

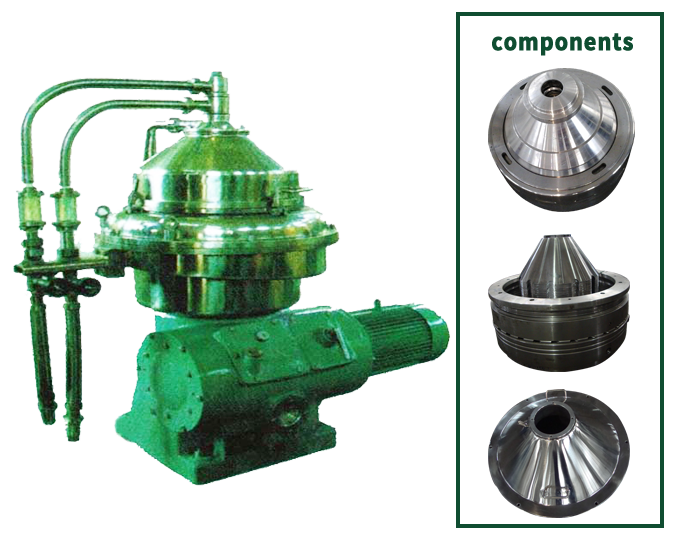

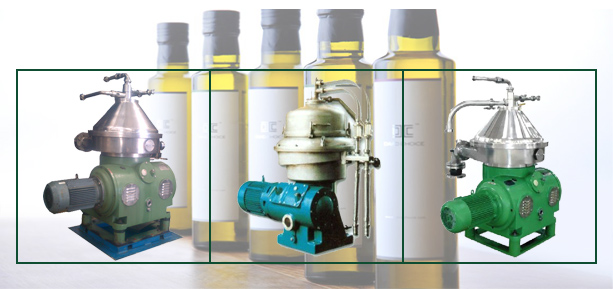

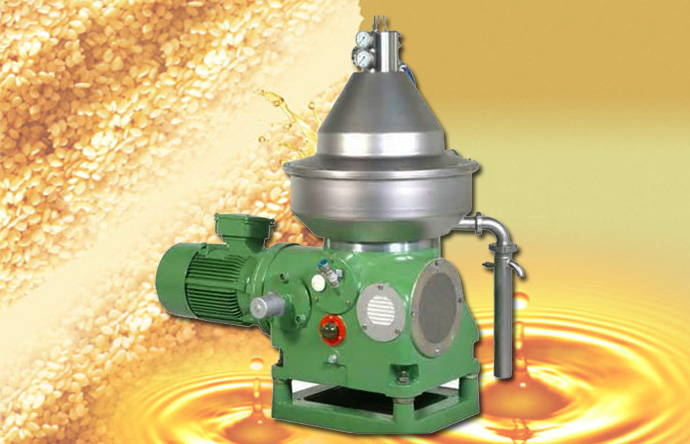

Vegetable Oil Disc Separator
--------------------------------------------------------------------------
PDSV series automatic discharging separator is special equipment for oil and fat refining, it has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noise and fine separating affection. Centripetal pump system designed by our professional designer has the trails as stability outlet pressure, large regulating sphere and operating easily, Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating number at any time,We can make separating and discharging to the best affection from regulate separating parameter directly at the screen.
This machine products are widely used in degum, de-soap and water washing technology in vegetable oil refinery, removing off the soap-stocks、blue and water from the vegetable oil during oil refining process. It is also used to the similar feed stock of Liquid-Liquid-Solid three-phase materials.
It can also be used for refining of animal oil and mineral oil, and liquid-liquid and liquid-solid separations of light industry, chemical industry, medicine and food industry.
Characteristics:
• Full-automatic vibration detector can monitor the vibration strength value of the centripetal pump at any time,and can also alarm automatically when the vibration value exceeds standard value
• Automatic alarm for oil leakage and automatic heavy-phase sealing device
• Display with touch screen and automatic controlling instrument for industrial computer
• Heavy-phase centripetal pump adopts European advanced electric positioner control. Adjust the diameter of heavy-phase centripetal pump automatically.
Application:
Soybean oil; Rapeseed oil; Sunflower oil; Cottonseed oil; Palm oi; Corn oil; Rice bran oil; Special oils and fat;
For Lecithin de-oiling. Re-refining of used frying fats.degumming, neutralization, dewaxing fractionation,
process oil clarification.
Olive Oil Extraction Technics Flowing Chart:
|
Model
|
PDSV-1500
|
PDSV-2500
|
PDSV-5000
|
PDHZ550
|
PDRS550
|
|
Capacity (L/h)
|
1000-1500
|
2500 (60TPD)
|
5000(100TPD)
|
250-300TPD
|
|
Motor power (KW)
|
7.5
|
11
|
15
|
22
|
18.5
|
|
Discharging type
|
Part discharging
|
Part discharging /Manual discharging
|
Part discharging
|
Part discharging
|
Manual discharging
|
|
Net weigh (KG)
|
1200
|
1030
|
1077
|
2580
|
1780
|
|
Overall dimension
L × W × H(mm)
|
1660x1440x1900
|
1800x1500x1750
|
1269x1187x1495
|
1850×1500×1855
|
|
1780×1560×1855
|
Note: Other capacity models are also available as per customer require
--------------------------------------------------------------------------
