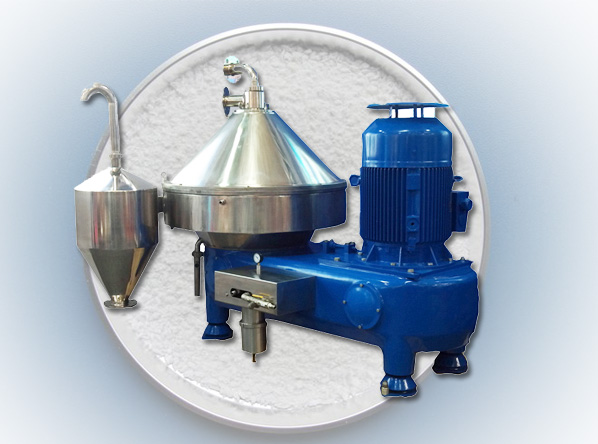

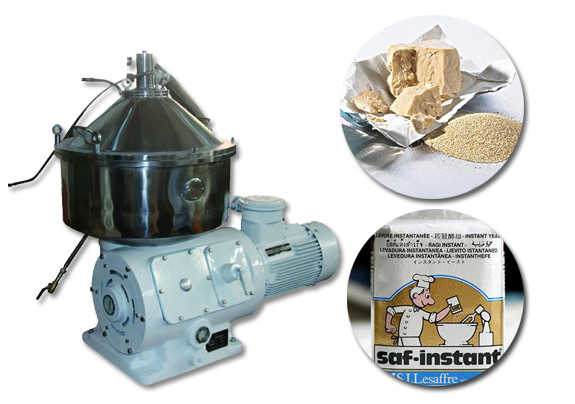

Saccharomycetes Disc Separator
--------------------------------------------------------------------------
Model PDS Y10000 separator is the newest pharmacy separator, mainly used in the industry of Chinese traditional medicine and chemical industry, etc.
The machine adopts automatic control, and has the advantages of high efficiency, low material consumption,convenient operation and economic maintenance cost. It adopts small piston structure for gaining variable discharging capacity, and PLC control both partly and fully discharging in order to get rid of sediment.

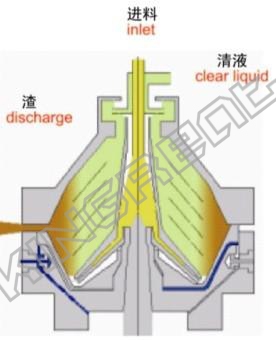

The clear liquid is pumped out by centripetal pump, the sludge is discharged automatically and partly .
The machine is one kind of rotary machine with high speed . After accurate dynamic balancing, it can run for long time with low vibration, safety and security. It has interlayer refrigeration.

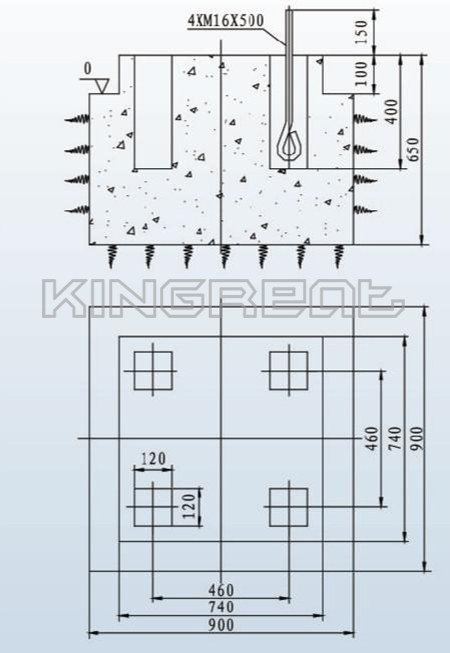

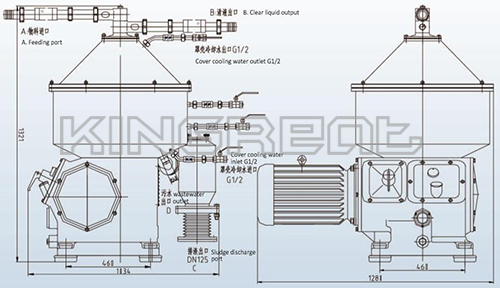

Dimensions：
Technical parameter:
|
Discharging type
|
Variable capacity discharging
|
|
Capacity
|
L/h
|
≥ 10000
|
|
Clear liquid output pressure
|
Mpa
|
≤ 0.2
|
|
Motor power
|
kw
|
15 (380V/50Hz/3P)
|
|
N.W.
|
kg
|
1049
|
|
Dimension
|
L × W × H (mm)
|
1280 × 1034 × 1321
|
--------------------------------------------------------------------------
Update：2014-11-26 16:17:29 Visits： Category：yeast separator
--------------------------------------------------------------------------
|
