Lanolin disc separator
--------------------------------------------------------------------------

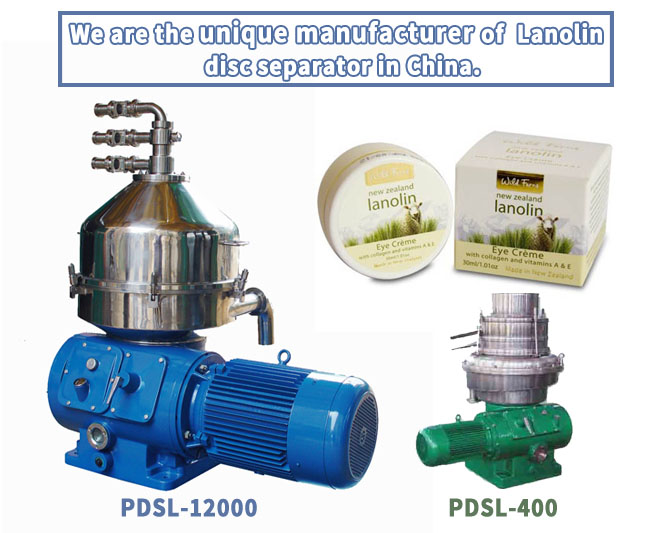

We are the unique manufacturer of Lanolin disc separator in China.
Lanolin is the best oil grease deprived from the natural wool,today,the biggest wool producing county is Australia.,Lanolin has big usage in our daily life,such as rust protection agent,cosmetic.first class lubrication media etc,it is the by product of the wool factory,but it is very valuable.Factory hopes to get more and pure Lanolin to get more profit,in the other hand,they have to separate the lanolin to meet the environmental effluent standard.
Applications:
It is widely used in lanolin sludge’s separation, to separate the 4% lanolin with some solid mixture to extract lanolin and recycle some water. It is also applicable to some similar material’s separation, like palm oil.
In nowadays process,there is only 2 stage separation could meet the requirement to get pure or more lanolin.

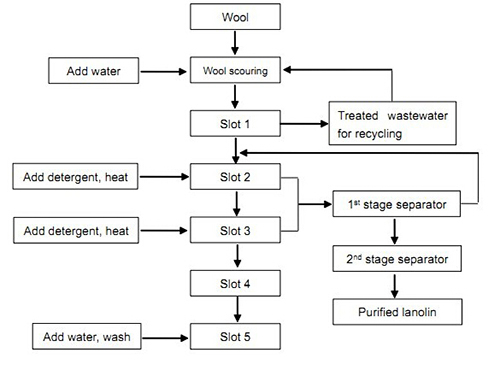

Process chart:
Model PDSL separator
This series automatic discharging separator is special equipment for oil refining. It is the disc type with continuous spraying discharging with high speed through the nozzles in out circle. It works steadily, with high efficiency and convenient operations, safe and reliable for separation.
After separation, the national standard is the water content in oil is less than 2%, but we can attain about 1%.
Technical parameter:
Model
|
PDSL12000
|
PDSL-1000
|
PDSL-3000
|
PDSL-400
|
Capacity (L/h)
|
12000
|
1000
|
2500-3000
|
400
|
Motor power (KW)
|
22
|
7.5
|
7.5
|
2.2
|
Net weigh (KG)
|
1100
|
903
|
1430
|
1200
|
Overall dimension
L × W × H(mm)
|
1700X1490X1780
|
1600×1400×1900
|
1000x812x1186
|
882x530x885
|
|
ONE GROUP TO PROCESS
|
ONE GROUP TO PROCESS
|

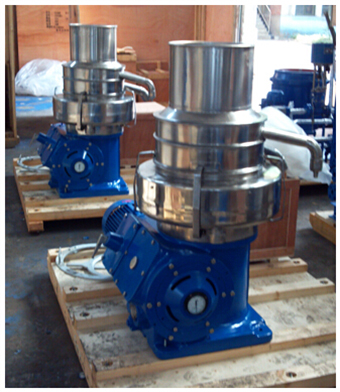

Photo on site:
--------------------------------------------------------------------------
