Coconut oil separation disc separator
--------------------------------------------------------------------------
Virgin Coconut Oil is Non-Trans-Fat, It does not form dangerous trans-fatty acids toxic to the body, naturally process through proper selection of newly harvested matured coconuts, grated the meat, wet cold pressed for extraction of coconut milk and natural separation of oil through centrifuge with cooling system, filtering of oil and vacuum dried to remove moisture.
Virgin Coconut Oil is Wet and Cold Pressed and Centrifuge Process which Absolutely No Heat (ANH) with natural fresh coconut flavor and aroma with clear like water appearance.
Brief introduction:
1.The material of drum doby, drum cover and valve is high strength stainless steel, the Moc of other parts are all high quality, anti-corrosion SS304, the separator shell employ SS304.
2.Drive structure support use SKF bearing, by employing optimal design to reduce the height of the drum’s center of gravity. It can effectively lower the vibrational level of the whole separator, improve the reliability of the equipment and increase the stability of the separator.
3.In the dismounting and maintenance, the parts of drum can be hoisted integrally, thus make the dismounting of main lock ring more convenient, saving both time and labor, easy to install the drum.
4.The separator runs supercurrent, it will send warning signals and be stoped if the machine overload, to make the separator runs safely.
5.The separator has a less vibration and more stability through price dynamic balance of the drum.
6.The separator adopts separation factor technology. It can separate product that is hard to separate, meanwhile, the machine has light volume and use the small volume to get big capacity and high separation efficiency.
7.The separator adopts advance belt drive, improving the reliability and maintainability of the separator, and decreasing cost of spare parts.

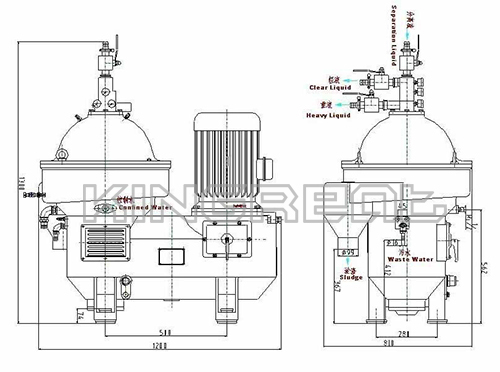

Dimension:

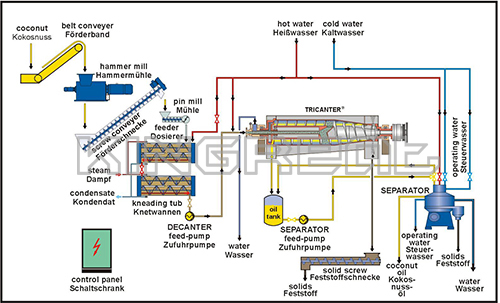

Process chart：
Technical parameter:
| Model |
PSWDB204SD-01 |
ZYDB314SJ-00 |
| Capacity |
1000L/h |
3000-4500L/h |
| Working diameter of bowl |
Φ230mm |
Φ510mm |
| RPM |
11200rpm |
5790r/min |
| Discharge type |
Self-cleaning (PLC control) |
Small Valve Discharge |
| Vibration |
≤2.8mm/s |
≤4mm/s |
| Noise |
≤85dB(A) |
≤90dB(A) |
| Starting Mode |
Frequency Startup |
Frequency Startup |
| Driving Mode |
Belt Drive |
Gear Drive |
| N.W. |
371kg |
1593kg |
| Dimension (L*W*H） |
930×750×1050mm |
1441X1226X1743mm |
| Motor |
7.5kw |
30kw |
--------------------------------------------------------------------------
