Latex Disc Separator
--------------------------------------------------------------------------
The natural latex is from rubber tree, milk white , solid content is 30%~40%, and the average diameter of solid is 1.06um. The fresh natural latex contain latex 27%~41.3%(m/m),water 44%~70%,protein 0.2%~4.5% ,natural resin 2%~5% ,saccharides 0.36%~4.2% and ash 0.4% . To facilitate transportation and processing, natural rubber latex should be concentrated to the solid content of 60% by adopting the method of centrifugal or evaporation. so it also known as concentrated latex.

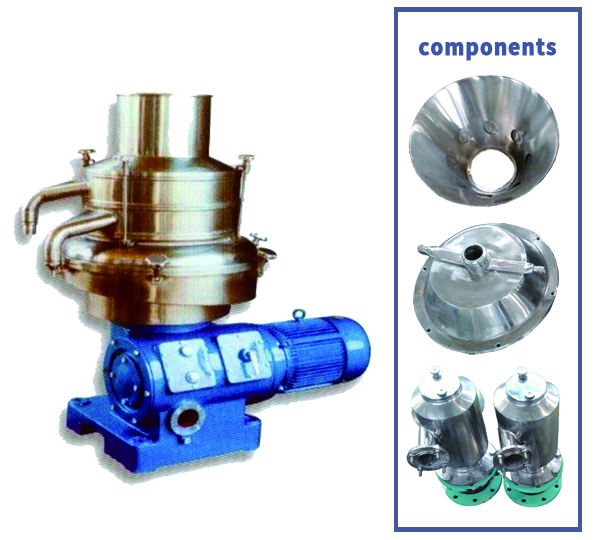

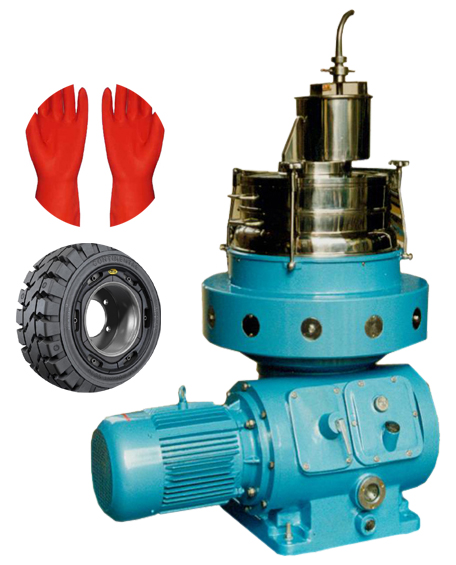

Latex separator model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim,as well as eliminate the solid impurities at the same time.This model of separator is provided with the following advantages:inverter start-up,el.magnetic brake,short stopping-and long effective separating time,large treatment capacity,good separating efficiency.It is really an excellent equipment for the latex production.
Process flow chart of concentrating natural latex by centrifugal:
Technical parameter:
|
Model
|
PDSLA-400/600
|
|
Rated capacity (L/h)
|
400-600
|
|
Motor power (kw)
|
11.0
|
|
Net Weight (kg)
|
1100
|
|
Gross Weight (kg)
|
1550
|
|
Dimension (L×W×H)
|
1260*930*1700
|
|
Dimension of package (L×W×H)
|
1570*1430*1900
|
--------------------------------------------------------------------------
